Product Specifications

	Specification1	Specification2	Specification3
Dimensions	Cage size: 172*230*150cm (3 tiers) Cage size: 172*265*170cm (4 tiers) Cell size:43*41*41cm	Cage size: 195*230*150cm (3 tiers) Cage size: 195*265*170cm (4 tiers) Cell size: 39*38*38cm	Cage size: 215*230*150cm (3 tiers) Cage size: 215*265*170cm (4 tiers) Cell size: 43*41*41cm
Capacity	4 doors per side per tier 4 chickens/cell (for laying hens weighing no more than 2.5kg) 96 chickens/set (3 tiers) 128 chickens/set (4 tiers)	3 chickens/cell 90 chickens/set (3 tiers) 120 chickens/set (4 tiers)	4 chickens/cell 120 chickens/set (3 tiers) 160 chickens/set (4 tiers)
Weight	Cage net: 45.0kg Cage frame: 14.0kg Feed trough: 25.0kg/3 pieces Water line: 6.Okg/3 pieces	Cage net: 60.0kg Cage frame: 20.0kg Feed trough: 33.Okg/3 pieces Water line: 8.0kg/3 pieces	Cage net: 50.Okg (3 tiers) Cage frame:18.0kg Feed trough: 30.Okg/3 pieces Water line: 8.Okg/3 pieces

Product Description
In modern egg-laying poultry farming equipment, the craftsmanship quality and structural composition of the cage system directly determine the equipment’s service life, operational efficiency, and economic benefits. Our cage system employs two advanced galvanizing processes and is equipped with comprehensive core components, providing an all-around solution for egg-laying poultry farming.

Advanced Surface Treatment Processes
Cold Galvanizing Process (Electro-galvanizing)
The cold galvanizing process utilizes electrolytic principles to form a uniform and dense zinc layer on the cage surface. This technique creates an exceptionally smooth surface texture, effectively reducing friction damage when poultry come into contact with the cage, while also facilitating daily cleaning and maintenance. Cages treated with the cold galvanizing process can achieve a service life of over 16 years, maintaining excellent anti-corrosion performance under normal farming conditions. The surface smoothness meets industrial standards, not only enhancing the equipment’s aesthetic appeal but, more importantly, reducing bacterial adhesion and waste accumulation, creating a more hygienic living environment for the poultry.

Hot-Dip Galvanizing Process
The hot-dip galvanizing process involves immersing the cage components in molten zinc at approximately 450°C, forming a metallurgically bonded alloy coating. This process creates a thicker zinc layer (typically 70-120 microns) with superior protective performance, extending the service life to 30 years. Although the surface smoothness is slightly inferior to cold galvanizing, hot-dip galvanizing provides unparalleled corrosion resistance, making it particularly suitable for farms with high humidity or more corrosive environments. The substantial zinc layer can withstand harsher physical impacts, demonstrating exceptional durability throughout long-term use.

Complete System Composition

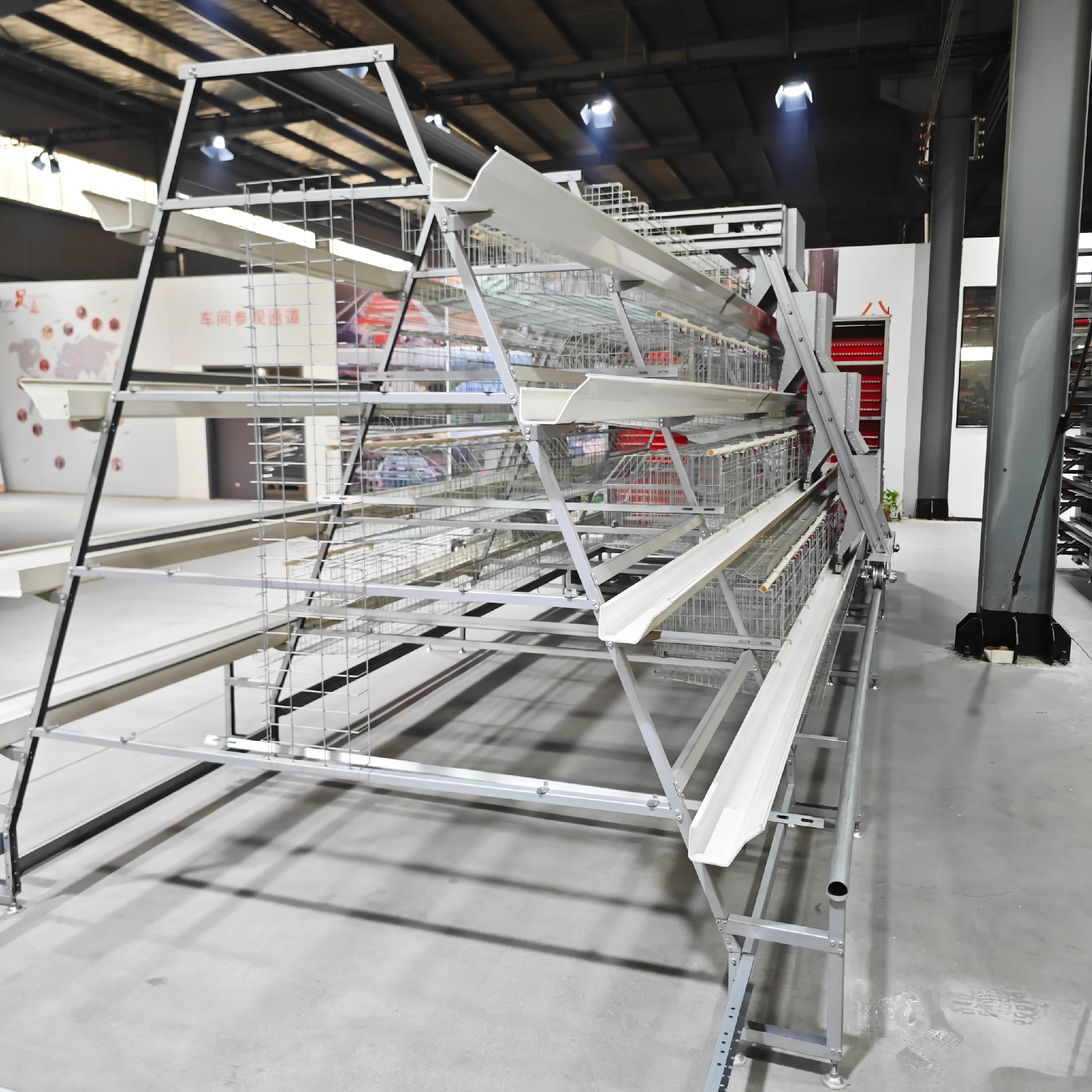

Sturdy and Durable Cage Frame Structure
The cage frame is constructed from high-strength steel, with a precisely calculated structural design capable of bearing the weight load of multi-tier cage systems. The unique mechanical structure ensures stability and prevents deformation during long-term use, providing solid support for the entire cage system.

Carefully Designed Cage Mesh System
The cage mesh is manufactured from high-quality steel wire, with scientifically designed aperture sizes that ensure comfortable standing for poultry while effectively preventing escape and injury. The special grid arrangement fully considers poultry ethological characteristics, providing reasonable activity space for the birds.

Intelligent Water Line System
The water line system consists of food-grade PVC pipes, stainless steel drinking nipples, and precision pressure regulation devices (or automatic water tanks):

Water Supply Piping: Uses antibacterial materials to prevent algae and bacterial growth

Drinking Nipples: Each bird has an independent drinking point, ensuring water hygiene and reducing cross-contamination

Pressure Regulation: An intelligent pressure regulation system ensures even water pressure across all tiers, providing stable water supply regardless of cage level

Efficient Feed Trough Design
The feed trough features a curved design that accommodates poultry feeding habits, with smooth edges to prevent bird injuries. The special cross-sectional design ensures even feed distribution, reduces waste, and when combined with automated feeding systems, enables precise feeding.

Comprehensive Advantages
Our cage system emphasizes not only the quality of individual components but also the synergistic effects of the system as a whole. The two galvanizing processes offer customers diversified choices, while the complete functional components ensure efficient operation throughout the farming process. Whether for newly built farms or equipment upgrades, this system provides reliable technical support and significant economic returns, truly realizing modernized and intelligent management of egg-laying poultry farming.
