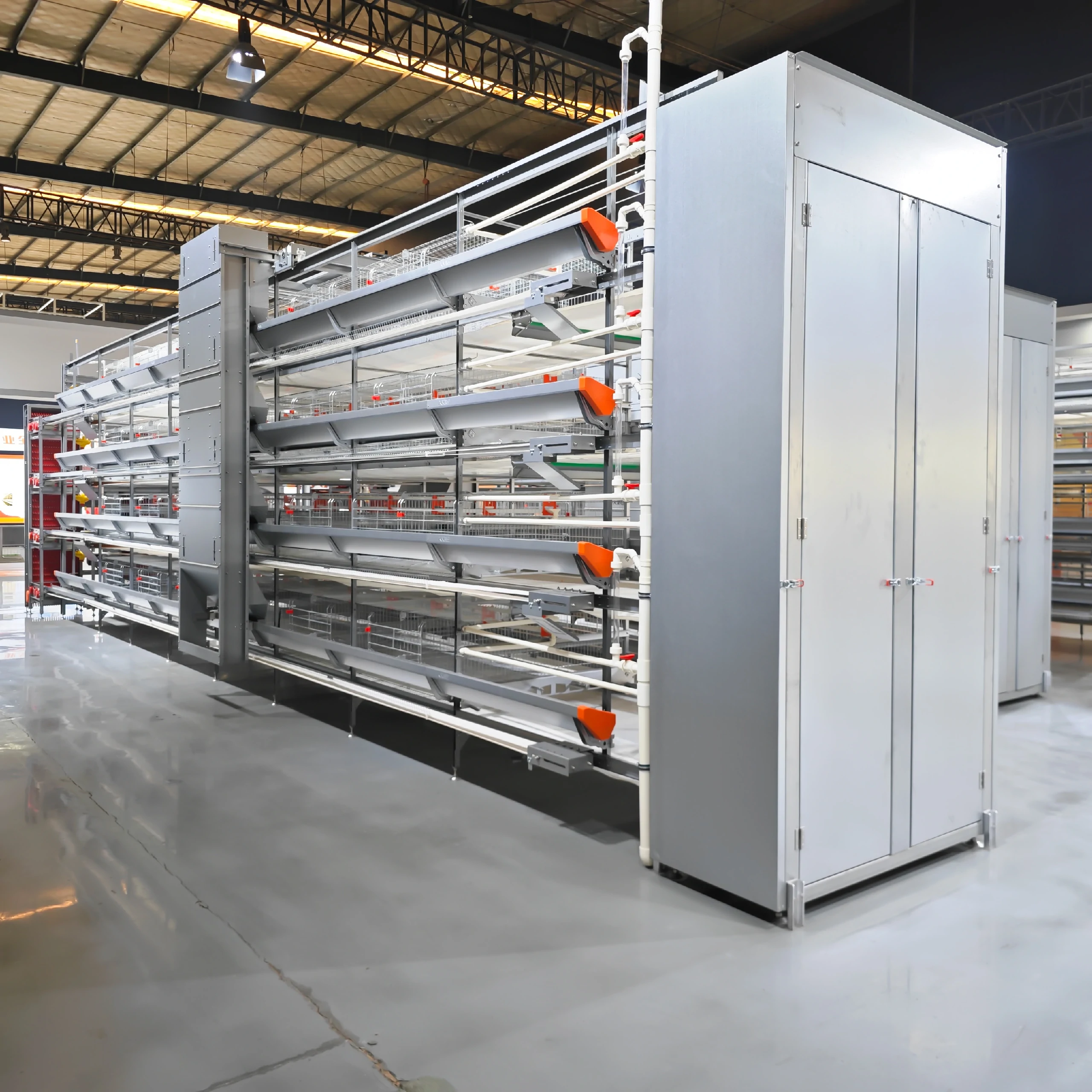

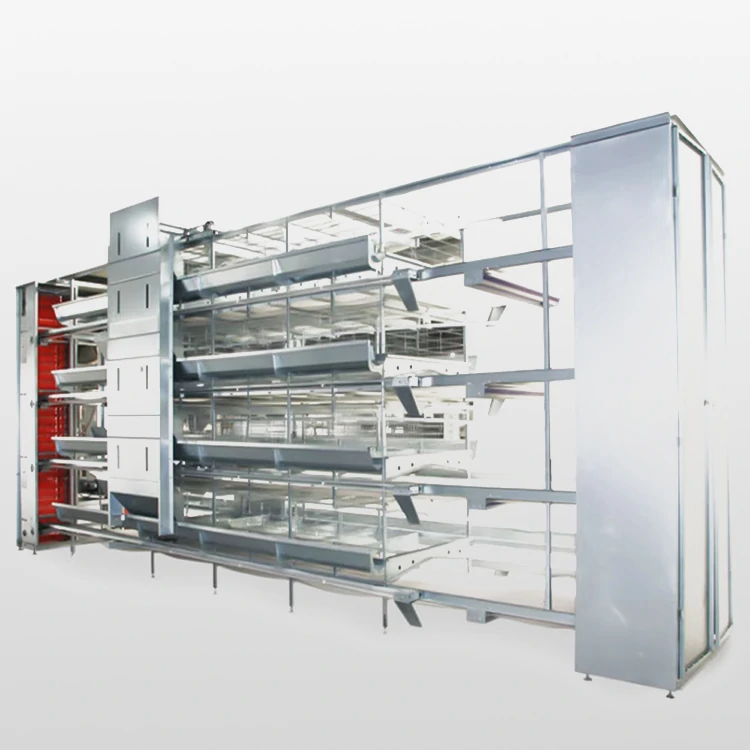

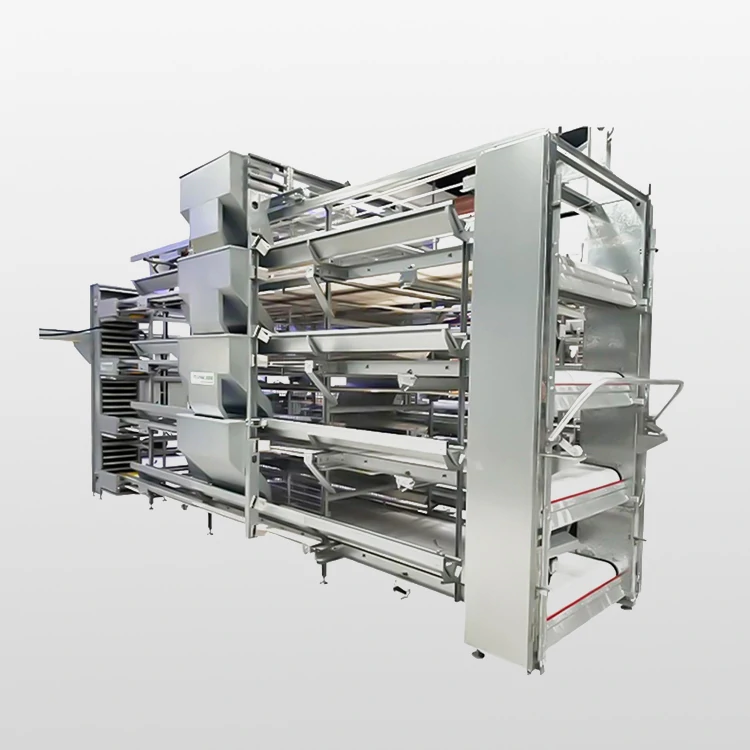

H Type layer chicken cage
Product Features:
1. The stacked frame design is reasonable, offering a sturdy and reliable structure with high breeding density. It occupies a small land area, saving approximately 60% of land compared to stepped designs. It boasts a high level of intensification, delivers strong economic benefits, and reduces investment costs.
2. The cages are typically manufactured using hot-dip galvanizing technology, which enhances durability and extends service life to 15–20 years.

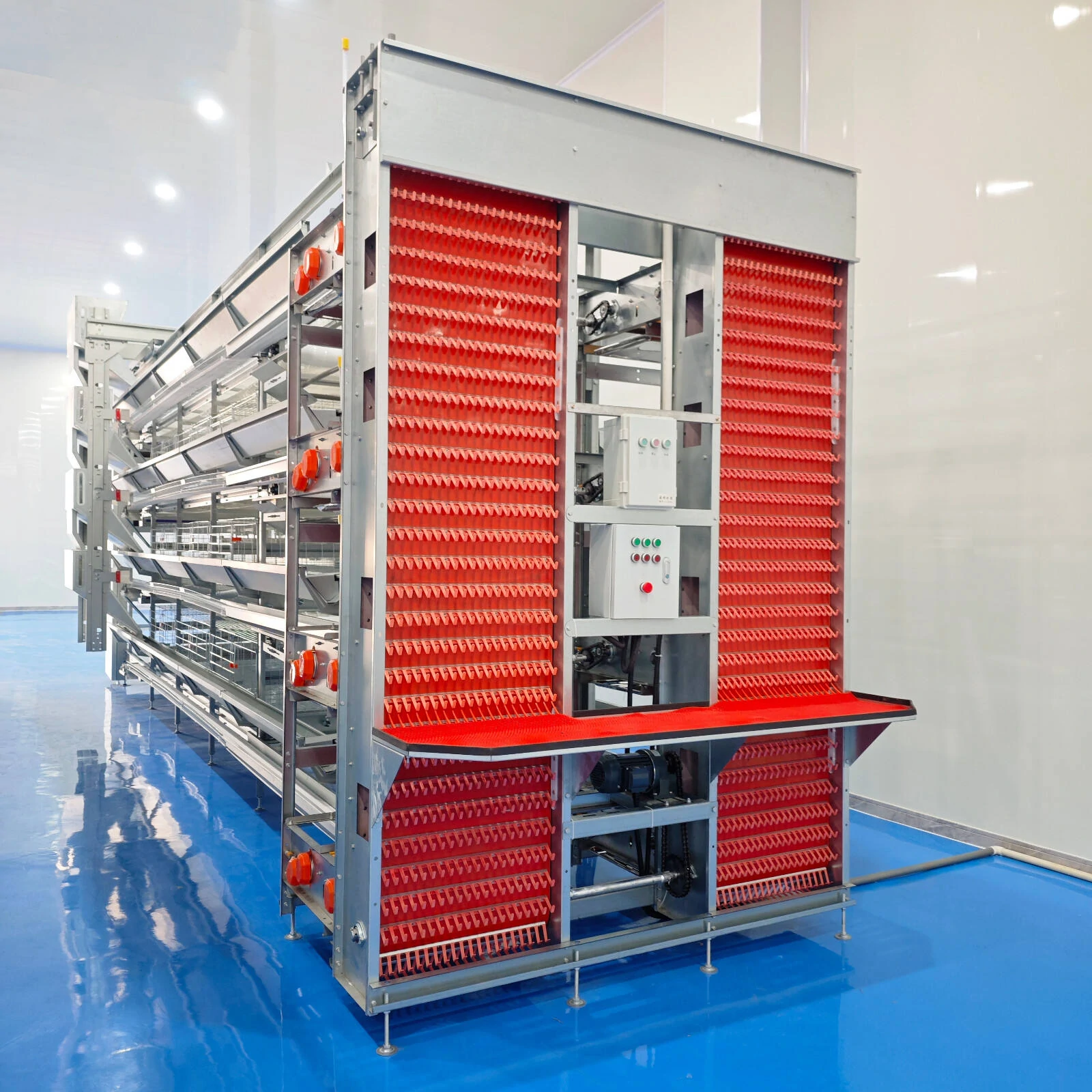

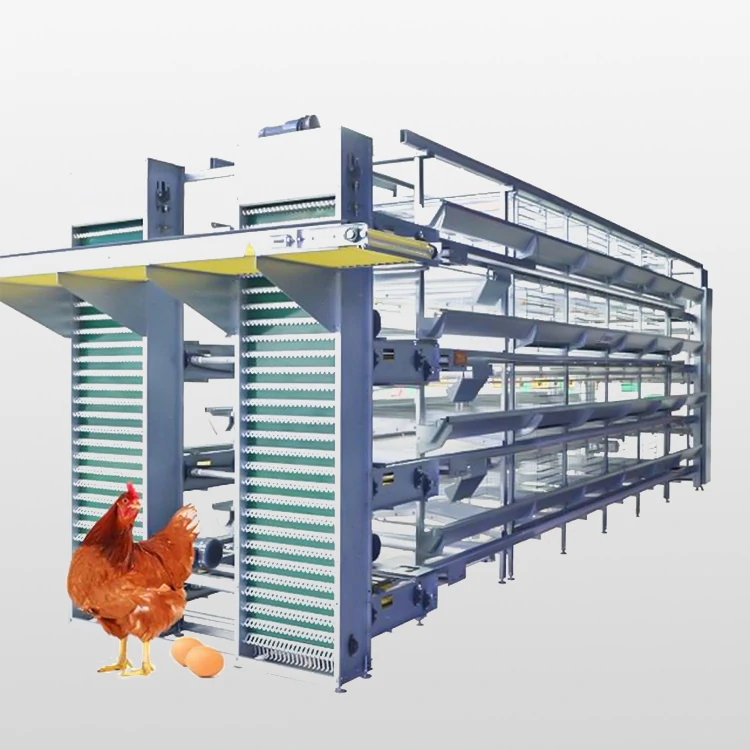

3. The egg collection system operates stably, ensuring a low breakage rate. It is user-friendly and highly automated.
4. Egg protection baffles prevent hens from pecking eggs and stop manure from falling into the lower feed troughs.
5. The stacked layer cage design reduces the movement of hens, lowering energy consumption and saving feed. Meanwhile, concentrated nutrition contributes to increased egg production.
6. Suitable for various types of chicken houses (open, semi-open, and closed).
7. Facilitates breeding management, significantly reduces the number of operators, lowers labor intensity, and improves labor productivity.
8. The cages can be customized according to the specific needs of farmers, including dimensions and the number of cages, to meet breeding requirements at different scales.
Product Parameters
| Cage Size(L*W*H) | Birds/Set | Tiers | Average occupying/Birds |
|---|---|---|---|
| 1200*1200*700mm | 128 | 4 | 450cm² |
| 1200*1200*700mm | 160 | 5 | 450cm² |
| 1200*1200*700mm | 192 | 6 | 450cm² |
| 1200*1200*700mm | 256 | 8 | 450cm² |
| 1800*1200*700mm | 192 | 4 | 450cm² |
| 1800*1200*700mm | 240 | 5 | 450cm² |
| 1300*1260*700mm | 144 | 4 | 455cm² |
| 1300*1260*700mm | 180 | 5 | 455cm² |
| 1300*1260*700mm | 216 | 6 | 455cm² |
| 1300*1260*700mm | 360 | 8 | 455cm² |
In today’s pursuit of efficient and intensive poultry farming, scientifically designed and high-quality equipment is key to enhancing productivity. The H-Type Stacked Layer Cage is an advanced system specifically engineered to meet the demands of modern, large-scale egg production facilities. Its core consists of three meticulously designed and rigorously processed components: a sturdy galvanized steel frame, durable hot-dip galvanized mesh, and a precision feeding trough. These three elements work in concert to create a stable, durable, and highly efficient farming environment.
1. Galvanized Steel Frame: The Robust Backbone of the System
The frame serves as the skeleton of the entire H-type stacked system. It is constructed from high-quality cold-rolled steel plates treated with professional galvanization. The “H”-shaped column design provides exceptional vertical load-bearing capacity and overall stability, easily supporting the weight of multiple cage tiers and the hens. This ensures unwavering solidity even under high-density rearing conditions. This structure not only maximizes space utilization—saving approximately 60% of floor space compared to traditional stepped cages—but also provides a solid foundation for the smooth operation of automated egg collection and manure removal systems. The modular design of the frame makes installation, expansion, and relocation remarkably straightforward, catering to the evolving needs of farms at different development stages.
2. Hot-Dip Galvanized Mesh: A Safe and Durable Living Space
The mesh, which comes into direct contact with the birds, is manufactured using a hot-dip galvanizing process. Compared to standard electroplating, hot-dip galvanizing creates a thicker, more adherent zinc coating that comprehensively covers the wire surface, offering long-lasting and reliable protection against corrosion and rust. This ensures the mesh can withstand the harsh, humid, and ammonia-rich environment of poultry houses for a service life of 15-20 years. The mesh design is scientifically calculated; the aperture size ensures hen comfort while standing and effectively prevents escape or injury. The smooth galvanized surface is easy to clean, reducing bacterial growth and providing a hygienic, safe living space for the layers, which helps lower disease incidence.
3. Hot-Dip Galvanized Feeding Trough: Guaranteeing Precise and Uniform Nutrition
The feeding trough is a critical component for ensuring uniform nutritional intake. Also made from hot-dip galvanized steel sheet, its excellent anti-corrosion properties prevent feed contamination from rust. The trough edge is rolled smooth, eliminating burrs and preventing injuries to hens during feeding. Its unique cross-sectional design ensures even feed distribution along the entire length, minimizing competition and guaranteeing adequate nutrition for every bird. It is fully compatible with automated feeding systems, enabling timed and measured feed delivery, which greatly saves labor and improves feeding efficiency and accuracy.
Overall Advantages:
The H-Type Stacked Layer Cage, through the superior integration of these three major components, achieves the “Four Highs”: high stocking density, high land utilization, high labor efficiency, and high return on investment. Its high degree of automation significantly reduces egg breakage rates, saves feed, and enhances egg quality. Compatible with open, semi-open, and closed housing systems, it is the ideal choice for driving the transformation and upgrading of the layer farming industry towards scale, standardization, and modernization.
